Drilling machine
Pneumatic drilling RIGS are a method of converting compression into mechanical rock by using compression as power, and the power part is a pneumatic motor. The major feature of this model is that it is used for construction in an environment without electricity, with a single power source and safety. It is particularly evident in some cases where there is no electrical equipment.

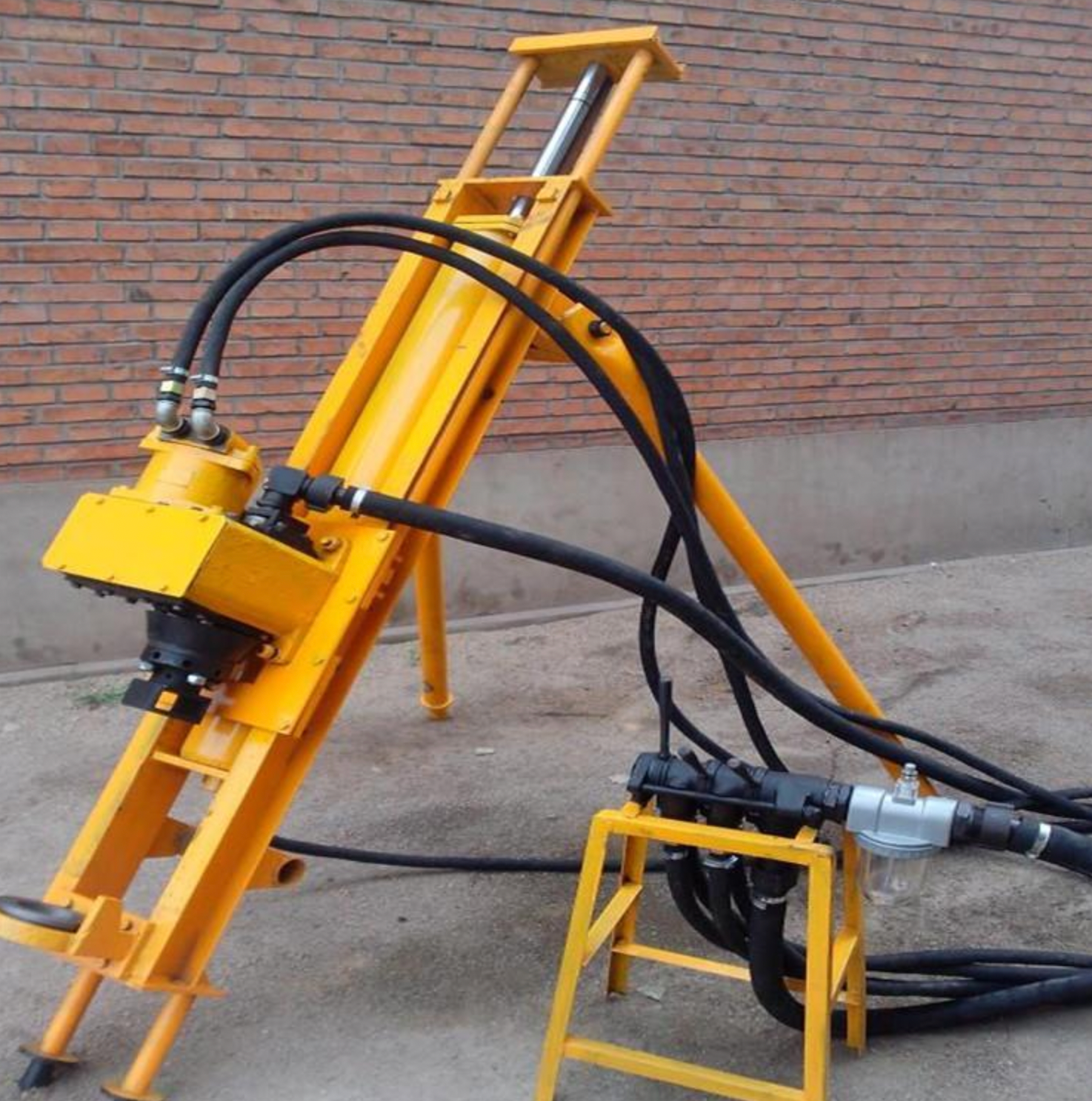

The column-mounted drilling rig is designed for tunnel engineering and underground engineering. The column is capable of being 1.6 meters low and 3.5 meters high. The drilling rig is placed on the support plate and can be rotated 360 degrees. The long slide frame and the short slide frame are often used on the column. For these two types of drilling RIGS, the high and low telescopic cylinders are all inside the slide frame. The long sliding frame is equipped with 1-meter drill pipes, while the short sliding frame is equipped with half-meter drill pipes. The specific drilling rig for the sample needs to be determined based on the detailed construction conditions on site. It is commonly used in underground engineering and tunnel engineering.
The cycloidal drilling rig is a compound power model, with the power part being electromechanical and compression. The cycloidal drilling rig has a large torque and strong drilling capacity, making it an excellent choice for deep holes. This type of drilling rig requires a lot of maintenance and is relatively heavy. This crawler pneumatic drilling rig is suitable for slope support, quarries, water conservancy projects, highway and railway construction, etc. It is equipped with a high base plate for machine movement, allowing it to traverse rough terrain by itself and load and unload vehicles, thus saving hoisting costs! Small in size, complete hydraulic system, safe!
